V type static classifier

SketchThe company has created a new global cement spares service model, providing crushers, stackers and reclaimers, pipe mills, hoists, vertical mills, preheaters, rotary kiln, chillers, burners, humidification for new dry process cement production lines.

Feed grain size≤25mm

Throughput150-1600t/h

【Application area】Cement grinding, gravel yard, mining, coal mining, concrete mixing station, dry powder mortar, quartz sand, etc.

【Applicable material】River pebbles, granite, basalt, iron ore, limestone, quartz stone, diabase, construction waste, iron ore, gold ore, etc.

GET PRICE

7*24 hours free consultation hotline

15195977196

產品概述
我公司開發的V型靜態選粉機是一種新型的分級設備，主要運用于大顆料物料的打散與分極。V型選粉機不需要任何動力，利用氣流的不同速度梯度，對粉狀物料進行粗分級處理。且內部采用大量的耐磨防護材料，減少對設備的磨損。
突出優勢
1.瀉落式分級，粒度分級范圍廣
2.梯形結構兼有打散功能，分級效果好
3.內部無動力部件，結構簡單，安裝維護方便
4.氣流調節粒度分布和流速，運行穩定

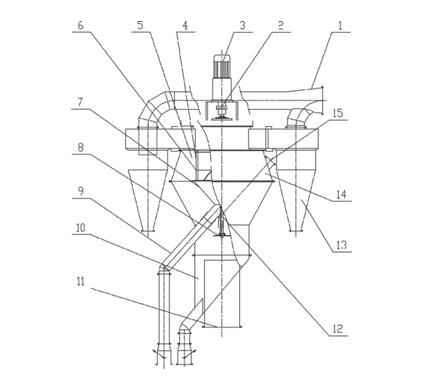

Working principle

物料經提升機從喂料溜子全寬度喂入V型選粉機中，均勻分散通過進風導流板進入選粉機分選區域。與此同時，由于選粉機內為負壓狀態，氣流從選粉機殼體進入選粉機，穿過均勻散下的物料，再通過出風導流板，后從出風管排出。由于重力作用，物料在下落過程中受到導流板的沖擊而變的松散，在氣流的折流作用下，其中的細粉會隨氣流經由出風管排出，直接進入高效選粉機內進行分選處理，并由袋收塵器收集為成品。粗粉在經過空氣調節閥的二次分選后，通過粗粉排料口排出。

Customer centered, heart moving customers

Creating value for customers is the consistent persistence of Lafa, customer demand-oriented, customer satisfaction is the significance of our efforts to adhere to. 365 days all-weather to provide you with a sound after-sales service, customer success is our unchanged goal, is willing to become a mentor in your career, mutual success.

Reliable quality
Years of experience in R & D and manufacturing of flour milling machinery
Innovative production
Constantly updating technology to produce new equipment
Environmental protection
Energy conservation and environmental protection is in line with state regulations.
Intelligentization
Actively developing intelligent Era
After-sale sound
Perfect after-sale service system

Case

T-SEPAX three separation separator

Name:T-SEPAX three separation separator
V type static classifier

Name:V type static classifier
Ultrafine powder classifier

Name:Ultrafine powder classifier
Dynamic classifier

Name:Dynamic classifier

女人高潮抽搐潮喷流白浆_很肉很黄a片小说_青青久久精品一本一区人人_特级黄片一区二区三区_久久国内精品自在自线_中文字幕日本熟女精品_丰满的岳乱妇一区二区三区_AV一区二区三区_日产特黄极日产_一个人看的www片免费高清

V type static classifier

Working principle

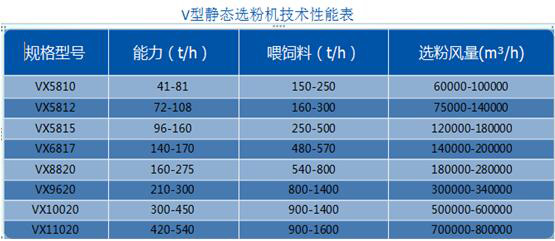

Technical parameter
